Rocker panels question

Xtant12

Well-known member
Joined
May 31, 2007
Messages
3,271
Reaction score
1
I don't know much about welding, and sheet metal. Down anyone on here know if a Grand Prix has inner and outer rocker panels or just outer??

OP
Xtant12

Xtant12

Well-known member
Joined
May 31, 2007
Messages
3,271
Reaction score
1
I'm confused with what that was. Did he just bend and weld metal to it, or were those inner and outer rocker panel s


10sec

I haz dat teddy bear smile.
Donating Member
Joined
Jul 26, 2008
Messages
23,595
Reaction score
298
I'm confused with what that was. Did he just bend and weld metal to it, or were those inner and outer rocker panel s
I think he made his own, but I just posted it so you can see what it looks like. Are yours bad like that?

OP
Xtant12

Xtant12

Well-known member
Joined
May 31, 2007
Messages
3,271
Reaction score
1
Not that bad. Just rusted through in a few small spots that you can only see when you open the door.

OP
Xtant12

Xtant12

Well-known member
Joined
May 31, 2007
Messages
3,271
Reaction score
1
Now I'm going to have to look under the car and see. I'll keep you posted!!


1quick

Well-known member
Donating Member
Joined
Jan 29, 2008
Messages
20,098
Reaction score
732
Location
coal city
it would honestly cost more than the car is worth to have someone do that for you, probably a lot more


Yaj Yak

Harbor Master
Donating Member
Joined
May 24, 2007
Messages
90,618
Reaction score
1,631
buy mine [MENTION=35]Xtant12[/MENTION].


CHI2000GTP

Grand Prix Junkie
Joined
Dec 1, 2017
Messages
407
Reaction score
21
Location
Chicago, IL
Rockers

it would honestly cost more than the car is worth to have someone do that for you, probably a lot more
^^ That. I'm getting mine done as we speak. Along with rear strut towers. It's not cheap. Costs way more then the car is worth. But I'm a GP loving urban hillbilly. So if you love the car, do it.

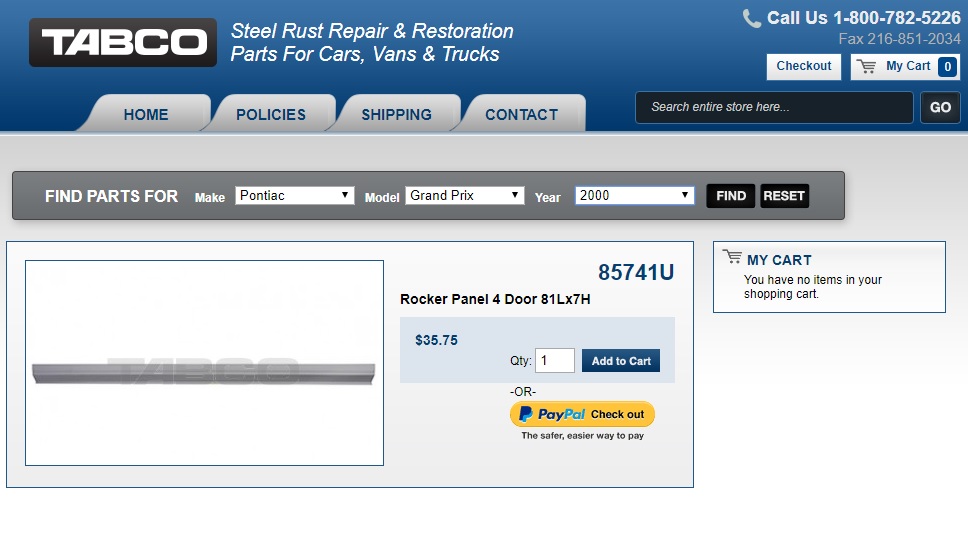

I ordered pre-molded rockers from TABCO. They are out in OH.


OP
Xtant12

Xtant12

Well-known member
Joined
May 31, 2007
Messages
3,271
Reaction score
1
^^ That. I'm getting mine done as we speak. Along with rear strut towers. It's not cheap. Costs way more then the car is worth. But I'm a GP loving urban hillbilly. So if you love the car, do it.

I ordered pre-molded rockers from TABCO. They are out in OH.

So are they only outer rocker panels? I can never find inner panels anywhere

OP
Xtant12

Xtant12

Well-known member
Joined
May 31, 2007
Messages
3,271
Reaction score
1
^^ That. I'm getting mine done as we speak. Along with rear strut towers. It's not cheap. Costs way more then the car is worth. But I'm a GP loving urban hillbilly. So if you love the car, do it.

I ordered pre-molded rockers from TABCO. They are out in OH.

Also I love my car. It has not much rust at all besides rockers. I would like it to last to give to my son when he is 16. He will be 1 in March so we have a ways to go!!


CHI2000GTP

Grand Prix Junkie
Joined
Dec 1, 2017
Messages
407
Reaction score
21
Location
Chicago, IL
Those are outer rockers.

The inner metal is often called the "dog leg". I have searched but cannot find any for GP's. That piece of sheet metal needs to be custom fabricated by your welder.


CHI2000GTP

Grand Prix Junkie
Joined
Dec 1, 2017
Messages
407
Reaction score
21
Location
Chicago, IL

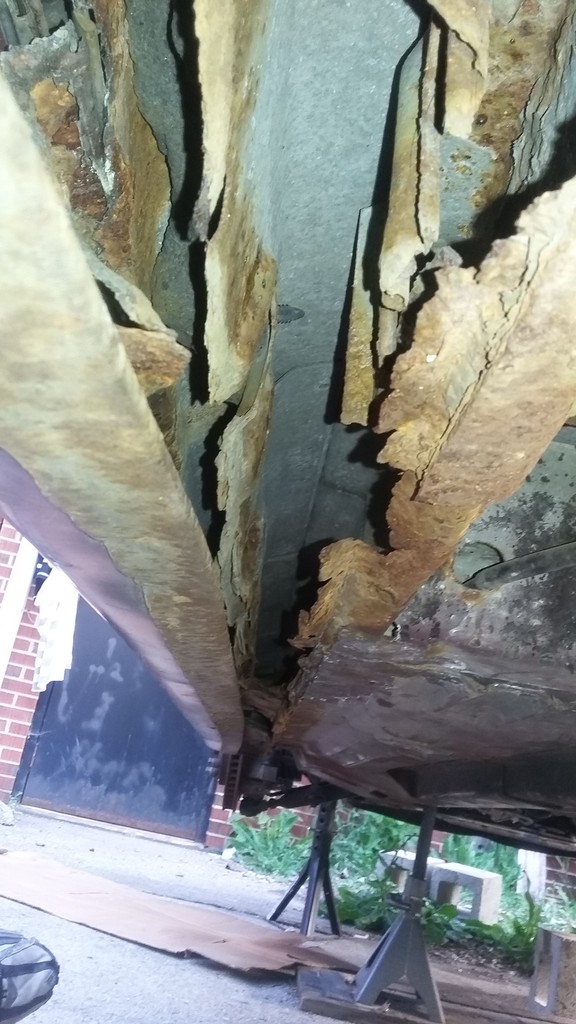

For everyone's amusement, I will post up what my rockers looked like.

BE AMAZED. And then vomit. But spare me the lectures!





b4black

Well-known member
Joined
Jun 6, 2008
Messages
1,076
Reaction score
22
Location
Oswego
I just went through this on my truck, with guidance from my neighbor/body man who does this all the time.

If you see small holes, it's way worse. They rust from the inside out.
Try to find "slip over" panels. they fit over the bad parts (but still cut out all the rusty metal).
Use panel bond (2-part) adhesive. Way easier than welding.
Spray any other rust you see with "fluid film". It will slow it down from getting worse. It's undercoating that does dry and flake off.


HILROD

Well-known member
Joined
Oct 22, 2007
Messages
1,504
Reaction score
92
Location
ELGIN
That rust doe. I don't think I would bother to fix one that bad. Xtants car should be way better I would hope. Usually the inners are way better than the outers so they can just be patched in with flat panels and a little work.
