so much fap. this power in a small block is a HUGE deal. except automotive :wtc:

Mercury Racing Reveals SB4 7.0 Automotive Crate Engine | Mercury Marine

Mercury Racing Reveals SB4 7.0 Automotive Crate Engine
Posted on November 1st, 2016

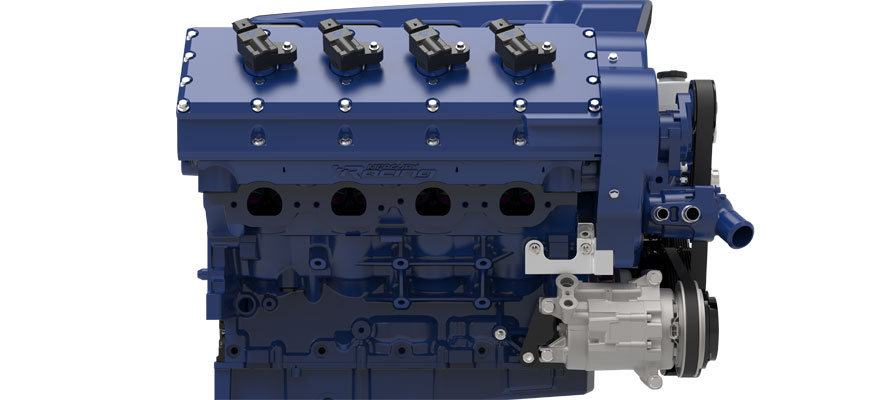

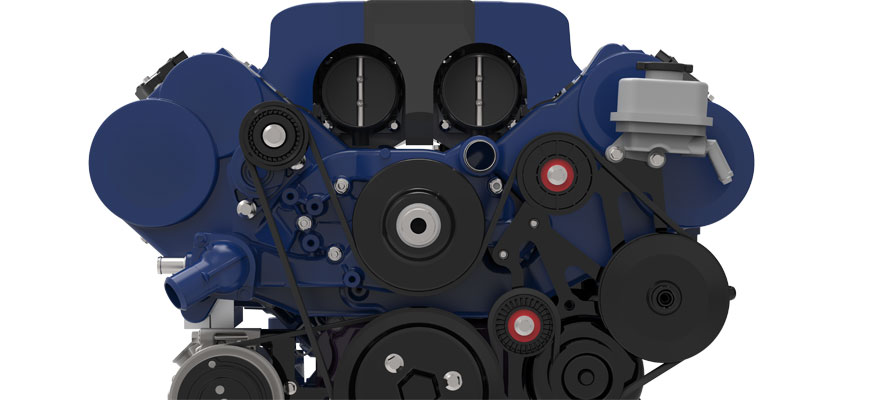

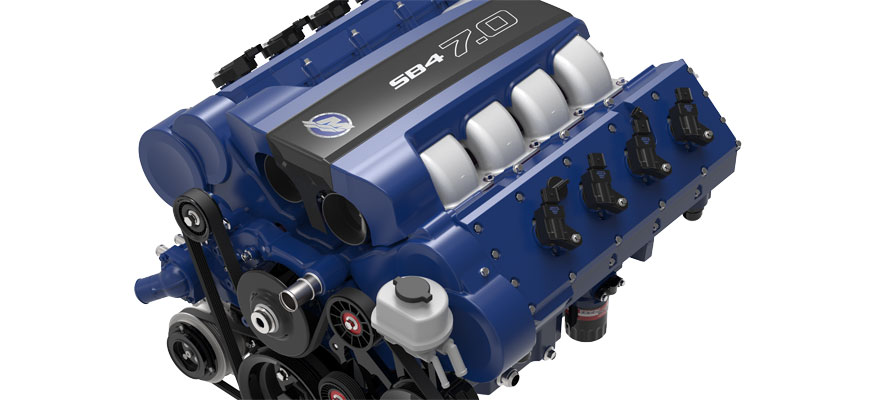

FOND DU LAC, Wis., Nov. 1, 2016 – Mercury Racing revealed its new SB4 7.0 (small block – four valve) automotive aftermarket crate engine this morning at the opening of the Specialty Equipment Market Association (SEMA) show in Las Vegas. SEMA consists of a diverse group of manufacturers, builders, distributors, retailers and publishing companies.

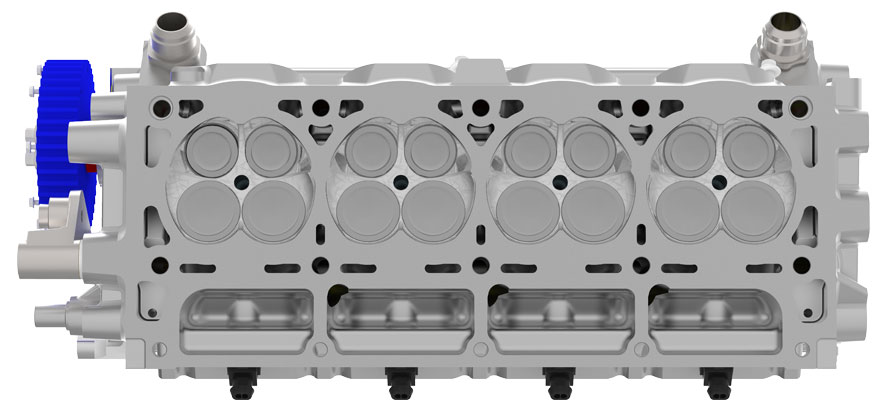

Designed, developed and manufactured in-house, the naturally aspirated, 7.0 Liter engine features Mercury Racing’s exclusive aluminum four-valve cylinder heads and dual overhead camshaft valve train integrated with an LS cylinder block packed with Mercury Racing spec hardware. This proven valve train, which greatly enhances engine durability over a standard two-valve design, enables the engine to produce a staggering 775 horsepower at 7500 RPM on pump fuel.

sb4-7-0-automotive-aftermarket-crate-engine_3_4-portBenefits of the DOHC four-valve design versus the typical LS pushrod layout include:

Improved intake and exhaust flow enable increased engine performance
Efficient, high tumble four-valve combustion
Low mass, high stiffness design reduces stresses and enables smooth high RPM operation and long life
Improved drivability due to optimized camshaft timing at comparable horsepower levels
Engineering Excellence

Mercury Racing is unique in the high-performance powertrain business in that they design and develop fully integrated systems. They even go as far as developing their own electrical and engine management systems. Mercury’s proprietary powertrain control module, featuring internally written software, provides the opportunity for customization and application specific needs.

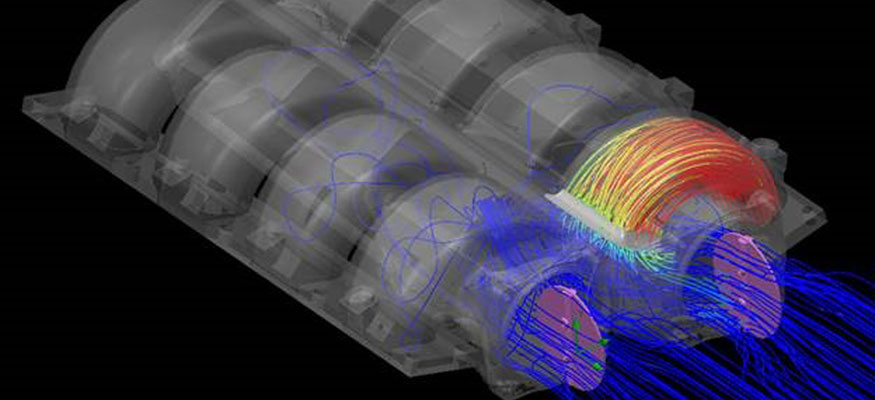

The Mercury Racing SB4 7.0 was developed utilizing 3D simulations and analyses on airflow, cooling, fuel and lubrication systems. Intense finite element analysis (FEA) studies were conducted on the head, block and rotating components to ensure an efficient and reliable powertrain.

Testing

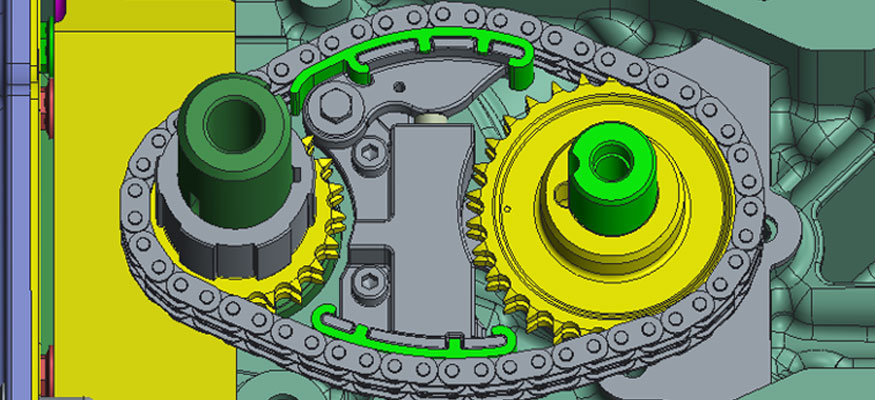

Prototype testing is where the rubber meets the road. Mercury Racing conducts fired engine, motored engine, and dynamic rig testing. Tests are conducted to calibrate engine management systems, evaluate in-cylinder combustion, and measure timing drive dynamics and torsional excitation, just to name a few. Mercury Racing people, capabilities, and facilities are recognized through ISO 9000 and EU RCD certifications.

Dressed to Thrill

SB4 7.0 engines are available as turn-key – ready to run engines featuring Mercury Racing’s proprietary engine control module and electrical harness. They come unpainted to allow builders to color match engines with the vehicle. Exhaust is not included.

Show & Go

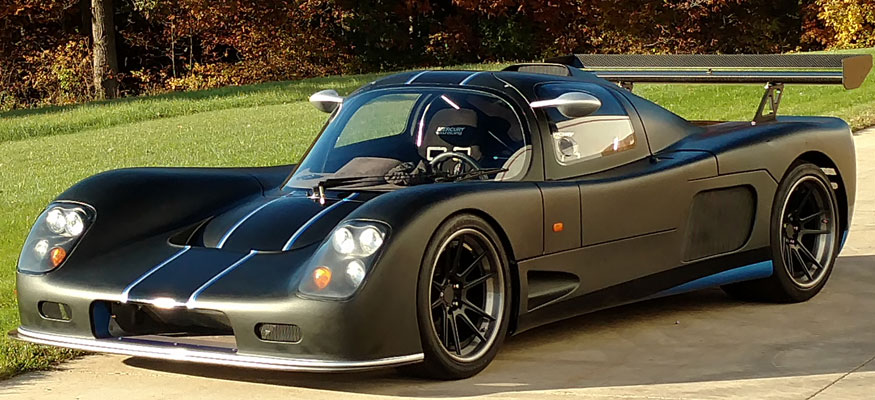

This is Mercury Racing’s fourth consecutive SEMA show. Their booth, #37005, is in the Upper South Hall of the Las Vegas Convention Center. A SB4 7.0 is featured in their development vehicle, a mid-engine Ultima GTR Supercar. The Ultima is flanked with two SB4 7.0 static displays, one fully dressed and one cutaway to reveal exclusive features. A fully dressed SB4 7.0 is also displayed in SEMA’s New Product Showcase, also in the Upper Show Hall. SpeedKore Performance Group, booth # 24587 in Central Hall has a SB4 7.0 engine on static display as well.

Mercury Racing is proud to display one of SpeedKore’s most popular builds to showcase their potent QC4 1650 crate engine. Deemed TANTRUM, the 1970 Dodge Charger earned a Gran Turismo award for best domestic build at SEMA last year. Speedkore’s impeccable carbon fiber work, featured throughout the car, was one of many unique highlights that caught the attention of the judges and media alike. From there – the car was sent to Los Angeles for multiple photo sessions and video shoots – culminating with a feature on Jay Leno’s Garage. Timing is everything. Shortly after the Leno show – the Mercury Racing powered Charger was requested for the filming of the next movie in the Fast & Furious franchise. TANTRUM will be seen in the upcoming Fast and Furious film – Fast8. In US theaters April 14, 2017

The SEMA show runs Nov. 1-4.


Bru

Well-known member
Super Moderator
Donating Member
Joined
May 24, 2007
Messages
37,029
Reaction score
151
Naturally aspirated?!?!?


Thirdgen89GTA

Aka "That Focus RS Guy"
Joined
Sep 19, 2010
Messages
10,558
Reaction score
117
Location
Buffalo Grove
In for car swap. Someone has to make this work.

Oh God, give it to me now. 775hp @ 7500rpm!
